Random Sine Electro-dynamic Vibration Mechanical Shaker Table for LED Luminaire
PRODUCT DESCRIPTION
The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.
Random Sine Electro-dynamic Vibration Mechanical Shaker Table for LED Luminaire can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.
TECHNICAL PARAMETERS OF VIBRATION SYSTEM
| Item | Description |
| Force (Maximum) | Sine | 600Kg.f peak |
| Random | 600Kg.f r.ms |
| Shock | 600Kg.f peak |
| Frequency Range | 5~2500 Hz |
| Max. Displacement | (Peak to Peak) 51mm |
| Max. Velocity | 1.8m/s |
| Max. Acceleration | 100G (980 m/s2) without loading |
| Vibration direction | Vertical and horizontal |
| Armature Diameter | 200 mm |
| Effective Armature Mass | 6kg |
| Table screw | 17×M10 |
| Max. payload | 300kg |
| Magnetic Leakage | <10gauss |
| Axial Vibration Isolation Frequency | 2.5HZ |
| Allowable eccentric moment | >300N.m |
| Dimension | 1200mm*790mm*840mm (Head Expander is excluded) |
| Weight | 1600kg (Slip Table is excluded) |
| Power supply | AC 3-phase 380V/50Hz,18 KVA |
| Grounding resistance | ≤4Ω |
| Air compressor | 0.4-0.6Mpa (provided by customer) |
| Cooling method | Air cooling |

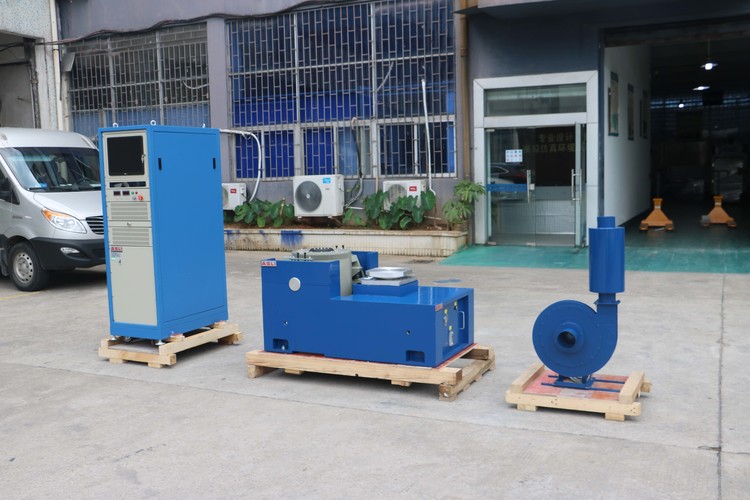

Electrodynamics Type High Frequency Shaker Table with Testing Platform 600*600mm Pictures for reference:
Any doubt or needs about Random Sine Electro-dynamic Vibration Mechanical Shaker Table for LED Luminaire, please don't hesitate to send your inquiry.
